Bombardier Learjet 40XR

Bombardier Learjet 40XR Banner
down arrow

The Bombardier Learjet 40XR is a midsize jet that is typically outiftted with one and a half cabin zones and has a range of 1,780 nm. There were 94 produced from 2005 - 2012.

Bombardier

Learjet 40XR

General Information

Start Model Year: 2005

End Model Year: 2012

fleet sizeFleet Size: 92

Engine Count: 2

passenger iconTypical Passengers: 6

Model Class: Jet - Midsize

 passenger iconUp to - Passengers: 6

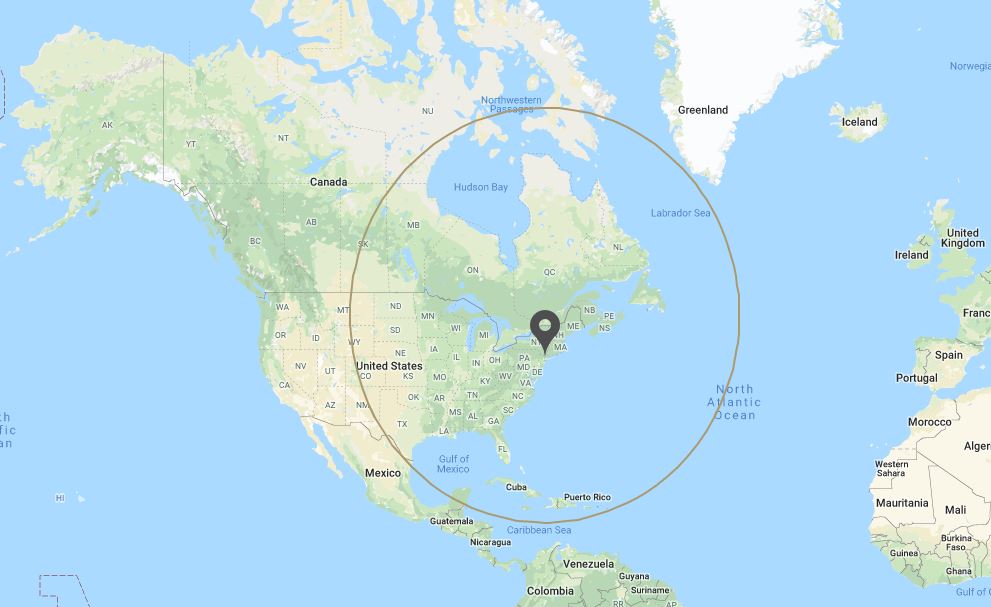

Bombardier Learjet 40XR range ring

Performance

Range:1,780

Max Cruising Speed:460

Ceiling (feet):51,000

Take off Distance (feet):4,250

Landing Distance (feet):2,430

Compare Aircraft Ranges

Dimensions

AIRCRAFT DIMENSION

Tail height (feet):14.1

Wing span (feet):47.8

Length (feet):55.5

Max Takeoff Weight (lbs.):21,000

CABIN DIMENSION

Height (feet):4.9

Width (feet):5.1

Length (feet):17.7

Cabin Zones:1

Cabin Diagrams

FLOOR PLAN

CABIN CROSS SECTION

Current Market

Ask Price Min:$2,500,000

Ask Price Max:$4,650,000

Model Year Min:2005

Model Year Max:2012

Total Time Min (hours):2,700

Total Time Max (hours):5,448

% of Fleet for Sale:7%

# For Sale:6

Technical Information

Engine Manufacturer : Honeywell

Engine Model : TFE 731-20BR

Hourly Rate /engine : $230

Overhaul Interval (hours) : 5,000

Overhaul Cost : $630,000

Mid Life Interval : 2,500

Mid Life Cost : $315,000

Typical Avionics Suite : Honeywell Primus 1000

APU Model : N/A

Financial

Based on 300 hours a year

FINANCIAL: ANNUAL FIXED COSTS

Crew:$408,000

Hangar:$43,700

Hull Insurance:$5,363

Liability Insurance:$35,000

Miscellaneous:$8,300

Annual Amount:$500,363

FINANCIAL: VARIABLE HOURLY COSTS

Fuel Consumption (gallons per hour):224

Fuel Cost (at $5.00 per gallon):$1,407

Maintenance:$1,250

Engine Reserves:$740

Miscellaneous:$230

Total Cost / Per Hour:$3,626.72

FINANCIAL: ANNUAL SUMMARY

Based on 300 hours a year

Typical Purchase Price:$3,575,000

Market Depreciation (%):12.27%

Market Depreciation ($):$438,652.50

Total Fixed Costs:$500,363

Total Variable Costs:$1,088,016

Total Cost of Operation:$2,027,031.50

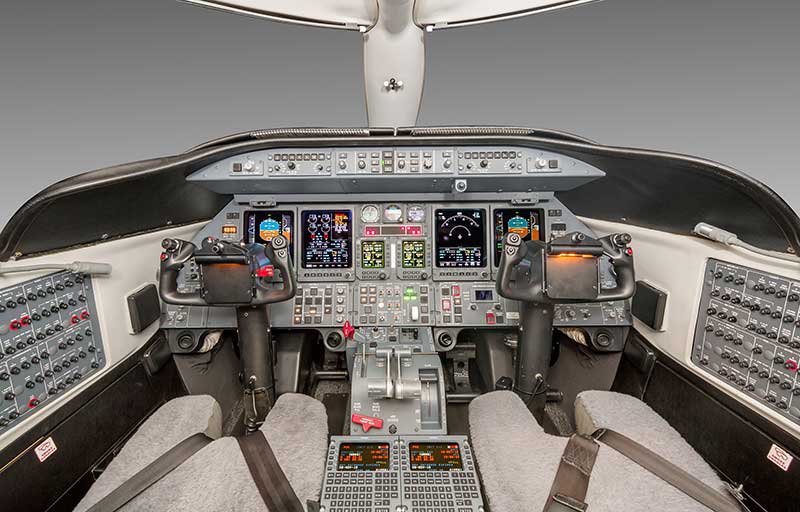

Bombardier Learjet 40XR model image /hal/userfiles/images/model-slides/55-1.jpg Bombardier Learjet 40XR model image /hal/userfiles/images/model-slides/55-2.jpg Bombardier Learjet 40XR model image /hal/userfiles/images/model-slides/55-3.jpg
