Bombardier CL 601-1A

Bombardier CL 601-1A Banner
down arrow

The Bombardier CL601-1A is a super midsize jet that is typically outiftted with two cabin zones and has a range of 3,200 nm. There were 43 produced from 1983 - 1987.

Bombardier

CL 601-1A

General Information

Start Model Year: 1983

End Model Year: 1987

fleet sizeFleet Size: 43

Engine Count: 2

passenger iconTypical Passengers: 9

Model Class: Jet - Super Midsize

 passenger iconUp to - Passengers: 12

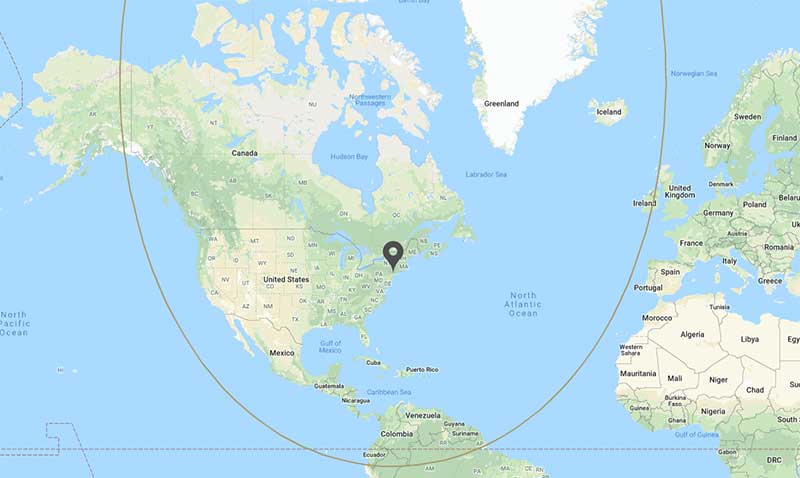

Bombardier CL 601-1A range ring

Performance

Range (Long):3,200 nm (5,926 km)

Range (Max Cruise):

Range (Seats Full):

Cruising Speed (Long Range):

Cruising Speed (Max Cruise):460 ktas (852 km/h)

Ceiling (feet):41,000 ft (12,497 m)

Take off Distance (feet):5,750 ft (1,753 m)

Landing Distance (feet):2,750 ft (838 m)

Compare Aircraft Ranges

Dimensions

AIRCRAFT DIMENSION

Tail height:20 ft 7 in (6.3 m)

Wing span:64 ft 3 in (19.6 m)

Length:68 ft 6 in (20.9 m)

Max Takeoff Weight:43,100 lbs (19,550 kg)

CABIN DIMENSION

Height:6 ft 1 in (1.9 m)

Width:8 ft 2 in (2.5 m)

Length:28 ft 3 in (8.6 m)

Cabin Zones:2

Cabin Diagrams

FLOOR PLAN

CABIN CROSS SECTION

Current Market

Ask Price Min:$1,350,000

Ask Price Max:$2,100,000

Model Year Min:1983

Model Year Max:1985

Total Time Min (hours):8,328

Total Time Max (hours):11,724

% of Fleet for Sale:9%

# For Sale:4

Technical Information

Engine Manufacturer : General Electric

Engine Model : CF34-1A

Hourly Rate /engine USD: $175

Overhaul Interval hrs: 6,000

Typical Avionics Suite : Honeywell 5 Tube

APU Model : 36-100

Financial

Based on 300 hours a year

FINANCIAL: ANNUAL FIXED COSTS

Crew:$671,000

Hangar:$72,500

Hull Insurance:$2,588

Liability Insurance:$35,000

Annual Amount:$781,088

FINANCIAL: VARIABLE HOURLY COSTS

Fuel Consumption (gallons per hour):365

Fuel Cost (at $6.28 per gallon):$2,292

Maintenance (5 Year Avg. Hourly Cost):$1,610

Engine Program:$1,570

Total Cost / Per Hour:$5,472.20

FINANCIAL: ANNUAL SUMMARY

Based on 300 hours a year

Typical Purchase Price:$1,725,000

Total Fixed Costs:$781,088

Total Variable Costs:$1,641,660

Total Cost of Operation:$2,560,748

Market Depreciation (%):CALL US

Market Depreciation ($):CALL US
